AD9219ABCPZ-40
Manufacturer:
Analog Devices
Mfr.Part #:
AD9219ABCPZ-40
Datasheet:
Description:

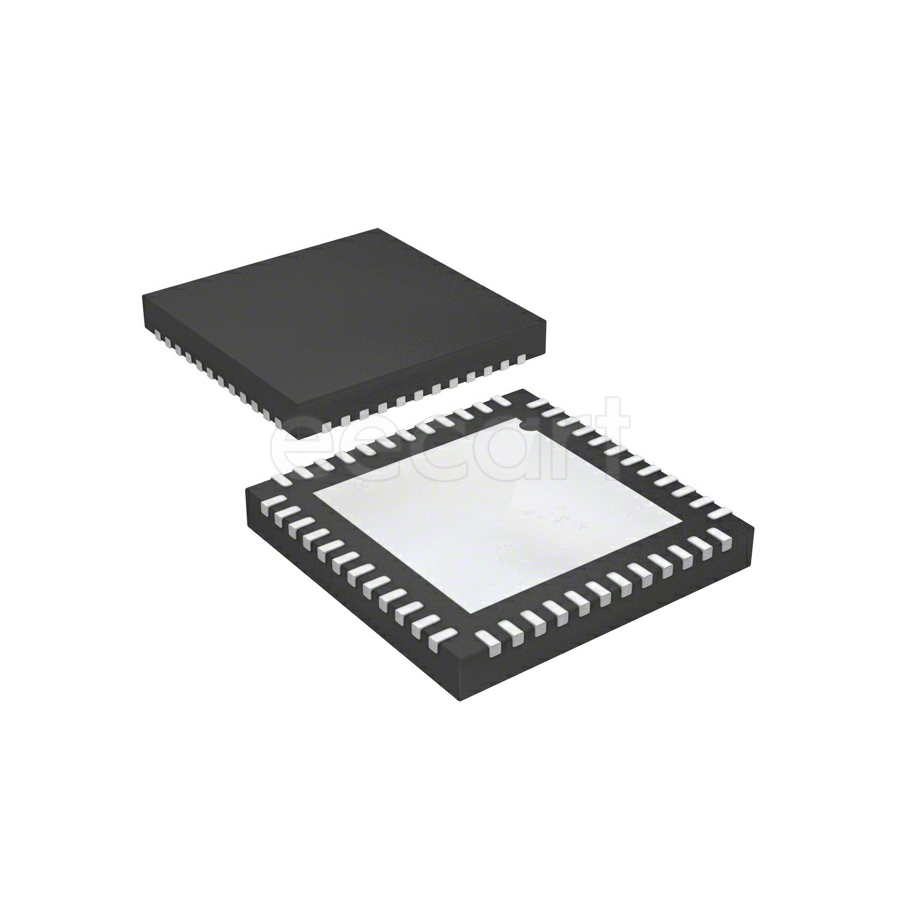

Analog to Digital Converters (ADCs) LFCSP-VQ-48 SMD/SMT number of channels:4 Number of Inputs:4 1.25 B 40 Msps Core Architecture:Pipelined
| Parameter | Value |
|---|---|
| Length | 7.1 mm |
| Width | 6.85 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 48 |
| Height | 950 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 4 |
| Interface | LVDS |
| Min Input Voltage | 1 V |
| Operating Supply Voltage | 1.8 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Power Dissipation | 378 mW |
| Max Supply Voltage | 1.9 V |
| Min Supply Voltage | 1.7 V |
| Power Dissipation | 295 mW |
| Number of Channels | 4 |
| Number of Bits | 10 |
| Input capacitance | 7 pF |
| Number of Inputs | 4 |
| Supply Type | Single |
| Max Input Voltage | 2 V |
| Sampling Rate | 40 Msps |
| Integral Nonlinearity (INL) | 0.4 LSB |
| Number of Converters | 4 |
| Number of Analog Inputs | 4 |
| power consumption | 295 mW |
| Resolution | 1.25 B |
| Number of A/D Converters | 4 |
| Signal to Noise Ratio (SNR) | 61.2 dB |
| Differential Nonlinearity | 0.4 LSB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| RoHS | Compliant |
| Packaging | Tray |
| Features | Simultaneous Sampling |
| Analog Supply Voltage | 1.7 V to 1.9 V |
| Max Digital Supply Voltage | 1.9 V |
| Min Digital Supply Voltage | 1.7 V |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Input Type | Differential, Single-Ended |
| Interface Type(Data Interface) | LVDS - Serial |
| Core Architecture(core/core processor) | Pipelined |
| Reference Type | Internal |
